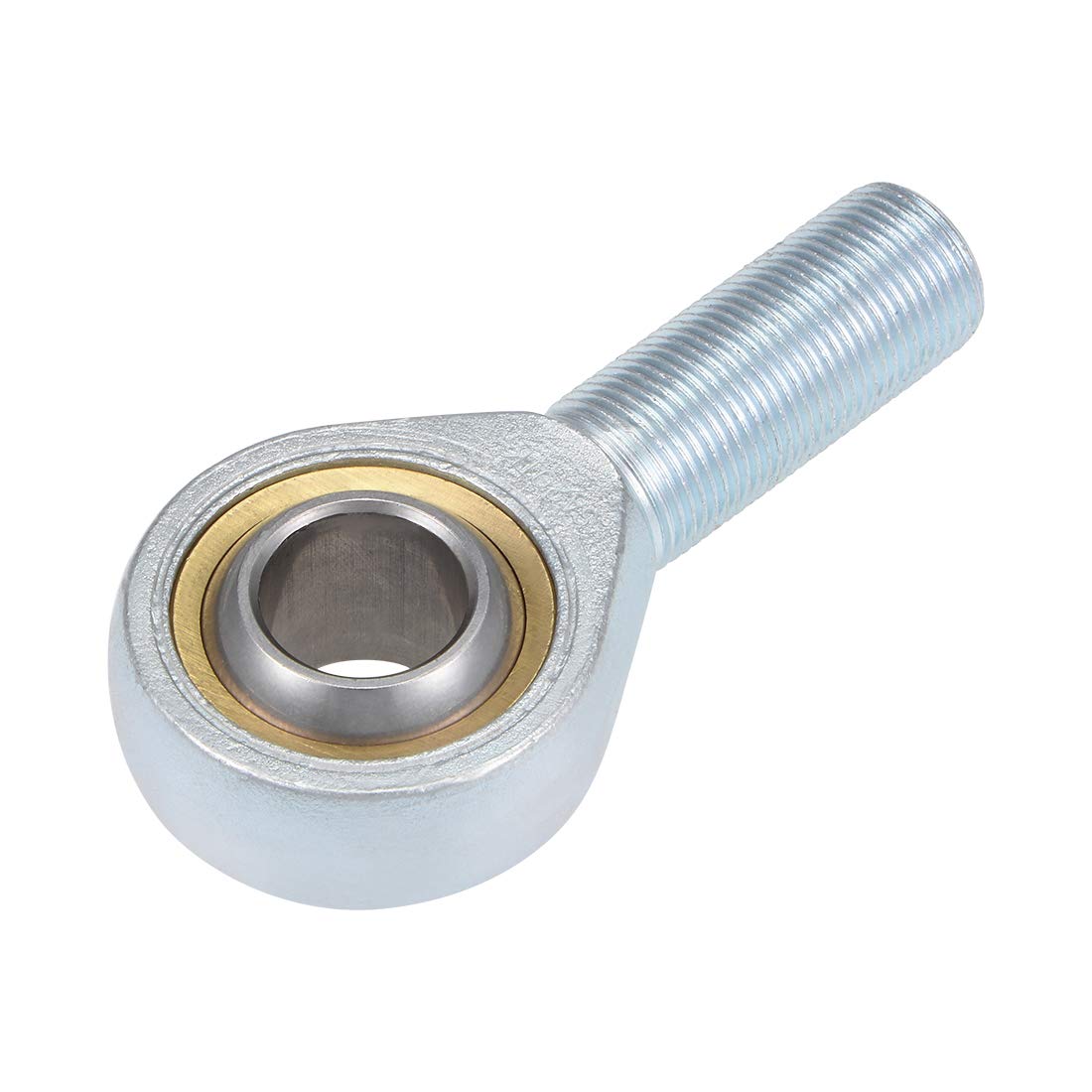

uxcell 20mm Rod End Bearing M20x1.5mm Rod Ends Ball Joint Male Right Hand Thread

Description:-Rod end bearing, is used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required.-A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached.-The housing is made of machined low carbon steel that is plated for corrosion resistance.-Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected partsSpecification:Bearing No.: SA20T/KMaterial: Carbon Steel, Chrome SteelThread Type: Male (External) Thread, Right HandThread Size: M20x1.5mmBore Diameter: 20mmThrough Bore Length: 25mmDynamic Load Ratings: 42.5kNStatic Load Ratings: 57kNPackage Content: 1Pack

• SA20T/K: 20mm Bore x M20x1.5mm External Right-Hand Threads
• Spherical rod end bearing for transferring motion between widely separated points, Widely used in engineering hydraulic cylinders, forging machine tools, automation equipment, and so on
• Machined carbon steel housing and male shank with right hand threads
• Bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion
• Self-aligning, large load rating, low noise, anti-corrosion, tough and durable. The bearing steel ball and the copper ring are locked and squeezed so that they will not fall off.
