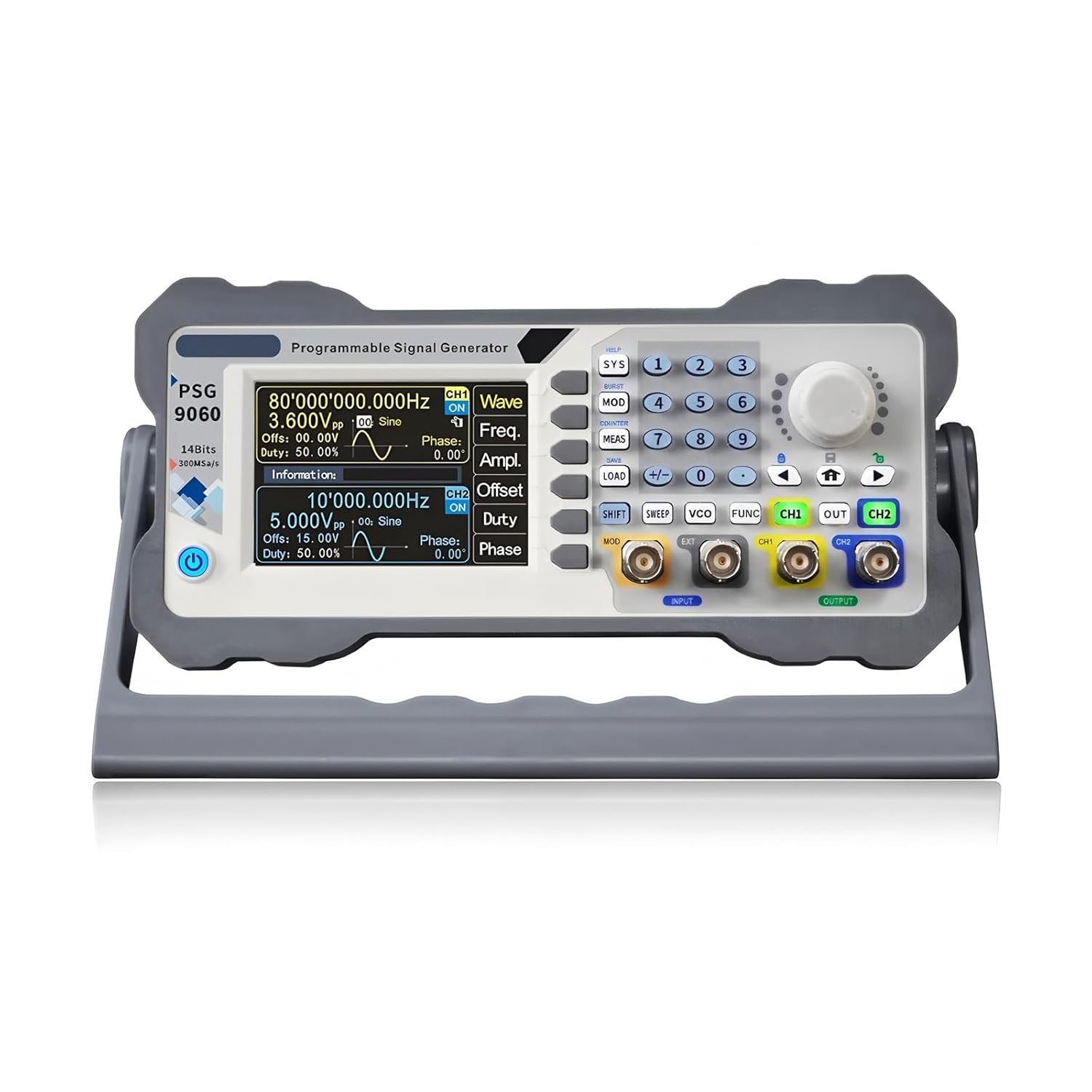

PSG9060 60MHz Programmable DDS Signal Generator 2-CH/Dual Channels Function Arbitrary Waveform Frequency Meter 300MSa/S(AU)

Function GeneratorsPSG9060 60MHz Programmable DDS Signal Generator Dual Channels Function Arbitrary WaveformFrequency Meter 300MSa/S Support Phone ControlData download link:<; Specification >ModelPSG9060Channel2 Sine wave frequency1nHz-60MHzSampling rate300MSA/SWave length8192 points/channelWaveformverticalresolution14 bitsWave typeSinewave, square wave, pulse wave (duty ratio, pulse width and cycle timecan be precisely set), triangle wave, rising ramp, falling ramp, CMOSwave, DC level, half wave, full wave, positive step wave, Inversestaircase wave, exponential rise, exponential fall, Lorentz pulse wave,multisonic wave, random noise wave, trapezoidal pulse wave, Sinker pulsewave, and 99 sets of user-defined waveforms.Square wave1nHz-30MHzTriangle wave1nHz-50MHzFrequencyresolution1nHzRise/Fall Time10nSAmplitude range<;1MHz<;11MHz11MHzFrequency60MHz2mVpp~25Vpp2mVpp~10Vpp2mVpp~5VppAmplitude resolution1mVppAmplitude stability± 1% ±1mVpp (@ 1kHz,>10mVpp)AmplitudeflatnessFrequency10MHz:±1%(0.1dB)<;Frequency50MHz:±2%(0.2dB)<;Frequency60MHz:±10%(0.9dB)Offset range-9.99V-12.00VOffset resolution0.01VPhase adjustmentrange0°-359.9°Phase resolution0.1°Outout impedance50 (typical)Modulation typeAM,FM,PM,ASK,FSK,PSK,PWMTrigger Manual burst, CH2 burst, external burst (AC), external burst (DC)Measurement functionFrequency, positive and negative pulse width, period, duty cycleCounter range0-4294967295Sweep functionSweep frequency, sweep amplitude, sweep dutySweep modeLinear, logarithmicVCOfunctionFrequency control, amplitude control, and duty cycle controlProgrammodeDebug and routinely store 100 groups of programs, each with 100 stepsProduct dimension247*243*102mmNet weight1038gPackage dimension340*280*140mmGross weight1900g1.Signal generator 2.power cable3.BNC male test lead 4.USB data cable5.BNC to alligator clips test lead 6.Quick start==========Battery Included : NoHigh-concerned chemical : NoneModel Number : PSG9060Display Size : 2.9 Inches & UnderDIY Supplies : ElectricalCertification : ,FCCType : Programmable signal generatorChannel : Dual ChannelsSine Wave Frequency : 1nHz-60MHzSquare Wave Frequency : 1nHz-30MHzTriangle Wave Frequency : 1nHz-50MHzFrequency Resolution : 1nHzSampling Rate : 300MSA/SWave Length : 8192 PointsVertical Resolution : 14 bitsSweep Function : Sweep frequency, sweep amplitude, sweep dutySweep mode : Linear, logarithmicSize : 247*243*102mmNet Weight : 1038gGross Weight : 1900g
